Computer Language
Lecture 12-2

Inheritance

Josue Obregon

jobregon@seoultech.ac.kr

Seoul National University of Science and Technology
Information Technology Management
Lecture slides index

June 2, 2025

Class contents

Introduction to Computer Programming and Java
Reading Input and Strings
Variables and calculation with numbers
Conditional statements
Repeating functionality
Methods
Lists
Midterm

Arrays and Strings
Introduction to Object Oriented Programming
More of Object Oriented Programming
Inheritance
Interfaces
Project Live Code Review and Evaluation
Final examination

Agenda

What is Inheritance
Class Hierarchies
extends and super
Access Modifiers, protected
Polymorphism
Good vs Bad Inheritance
Abstract Classes

Learning Objectives

You know that in the Java programming language every class inherits the Object class, and you understand why every object has methods toString, equals, and hashCode.
You are familiar with the concepts of inheritance, superclass, and subclass.
You can create classes that inherit some of their properties from another class.
You can call a constructor or method that is defined in a superclass.
You know how an object’s executed method is determined, and you are familiar with the concept of polymorphism.
You can assess when to use inheritance, and you can come up with an example that is not good for inheritance.

Introduction

Classes are used to clarify the concepts of the problem domain in object-oriented programming.
Every class we create adds functionality to the programming language.
This functionality is needed to solve the problems that we encounter.
An essential idea behind object-oriented programming is that solutions rise from the interactions between objects which are created from classes.
An object in object-oriented programming is an independent unit that has a state, which can be modified by using the methods that the object provides.
Objects are used in cooperation; each has its own area of responsibility.
For instance, our user interface classes have so far made use of Scanner objects.

Class hierarchy

Every Java class extends the class Object, which means that every class we create has at its disposal all the methods defined in the Object class.
If we want to change how these methods are defined in Object function, they must be overriden by defining a new implementation for them in the newly created class.
The objects we create receive the methods equals and hashCode, among others, from the Object class.

Note

Every class derives from Object, but it’s also possible to derive from other classes.
When we examine the API (Application Programming Interface) of Java’s ArrayList, we notice that ArrayList has the superclass AbstractList.
AbstractList, in turn, has the class Object as its superclass.


java.lang.Object
│
└──
java.util.AbstractCollection<E>
    │
    └──
    java.util.AbstractList<E>
        │
        └──
        java.util.ArrayList<E>

How does “extending a class” work?

Each class can directly extend only one class.
However, a class indirectly inherits all the properties of the classes it extends.
So the ArrayList class derives from the class AbstractList, and indirectly derives from the classes AbstractCollection and Object.
So ArrayList has at its disposal all the variables and methods of the classes AbstractList, AbstractCollection, and Object.
You use the keyword extends to inherit the properties of a class.
The class that receives the properties is called the subclass, and the class whose properties are inherited is called the superclass.

Manufacturing system example

Let’s take a look at a car manufacturing system that manages car parts.
A basic component of part management is the class Part, which defines the identifier, the manufacturer, and the description.

public class Part {

    private String identifier;
    private String manufacturer;
    private String description;

    public Part(String identifier, String manufacturer, String description) {
        this.identifier = identifier;
        this.manufacturer = manufacturer;
        this.description = description;
    }

    public String getIdentifier() {
        return identifier;
    }

    public String getDescription() {
        return description;
    }

    public String getManufacturer() {
        return manufacturer;
    }
}

One part of the car is the engine.
As is the case with all parts, the engine, too, has a manufacturer, an identifier, and a description.
In addition, each engine has a type: for instance, an internal combustion engine, an electric motor, or a hybrid engine.

The Engine class

The traditional way to implement the class Engine, without using inheritance, would be this.

public class Engine {

    private String engineType;
    private String identifier;
    private String manufacturer;
    private String description;

    public Engine(String engineType, String identifier, String manufacturer, String description) {
        this.engineType = engineType;
        this.identifier = identifier;
        this.manufacturer = manufacturer;
        this.description = description;
    }

    public String getEngineType() {
        return engineType;
    }

    public String getIdentifier() {
        return identifier;
    }

    public String getDescription() {
        return description;
    }

    public String getManufacturer() {
        return manufacturer;
    }
}

We notice a significant amount of overlap between the contents of Engine and Part.
It can confidently be said the Engine is a special case of Part.
The Engine is a Part, but it also has properties that a Part does not have, which in this case means the engine type.

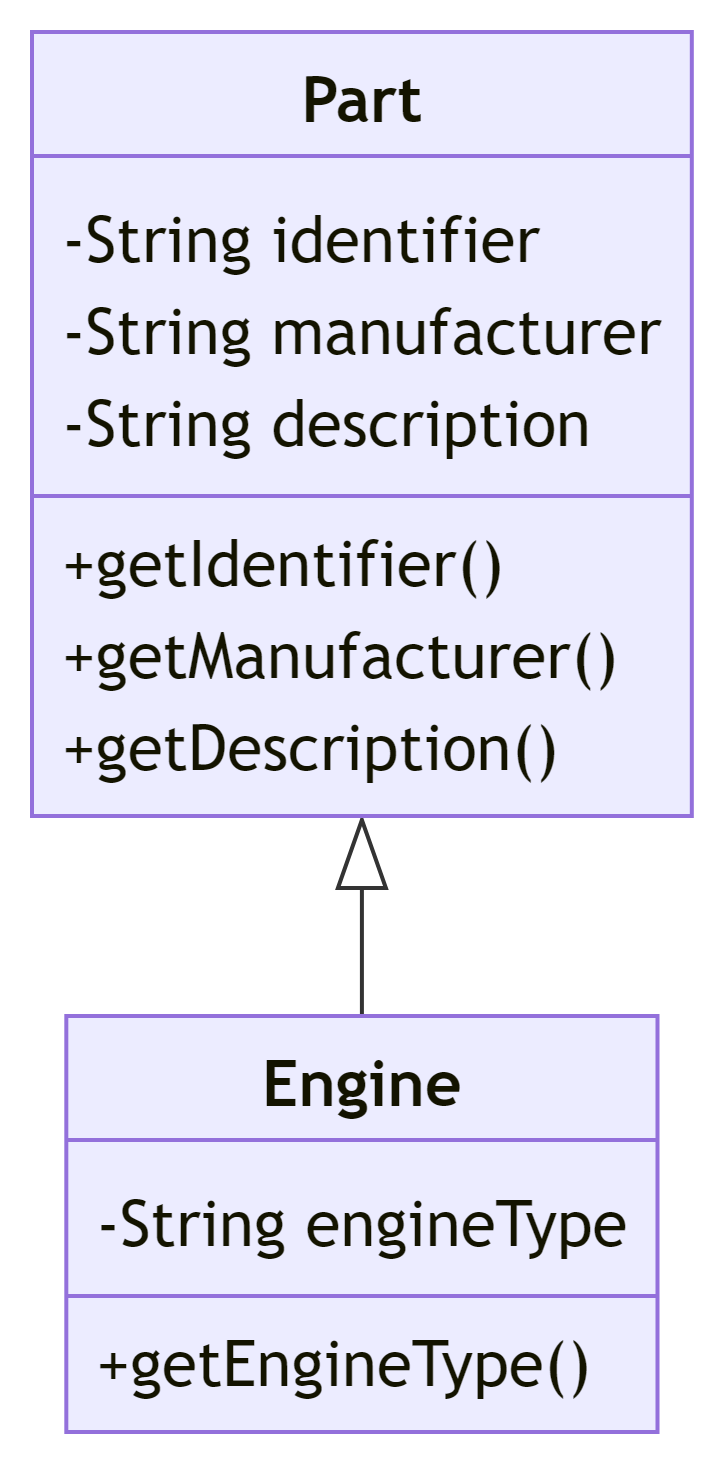

The improved Engine class

Let’s recreate the class Engine and, this time, use inheritance in our implementation.
We’ll create the class Engine which inherits the class Part: an engine is a special case of a part.

public class Engine extends Part {

    private String engineType;

    public Engine(String engineType, String identifier, String manufacturer, String description) {
        super(identifier, manufacturer, description);
        this.engineType = engineType;
    }

    public String getEngineType() {
        return engineType;
    }
}

The class definition public class Engine extends Part indicates that the class Engine inherits the functionality of the class Part.
We also define an instance variable engineType in the class Engine.

The constructor of Engine class

The constructor of the Engine class is worth some consideration.
On its first line we use the keyword super to call the constructor of the superclass.
The call super(identifier, manufacturer, description) calls the constructor public Part(String identifier, String manufacturer, String description) which is defined in the class Part.
Through this process the object variables defined in the superclass are initiated with their initial values.
After calling the superclass constructor, we also set the proper value for the object variable engineType.

Note

The super call bears some resemblance to the this call in a constructor
this is used to call a constructor of this class, while super is used to call a constructor of the superclass.
If a constructor uses the constructor of the superclass by calling super in it, the super call must be on the first line of the constructor.
This is similar to the case with calling this (must also be the first line of the constructor).

Engine object

Since the class Engine extends the class Part, it has at its disposal all the methods that the class Part offers.
You can create instances of the class Engine the same way you can of any other class.

Engine engine = new Engine("combustion", "hz", "volkswagen", "VW GOLF 1L 86-91");
System.out.println(engine.getEngineType());
System.out.println(engine.getManufacturer());

Sample Output

combustion
volkswagen

Create the following three classes:
Class A. Class should have no object variables nor should you specify a constructor for it. It only has the method public void a(), which prints a string “A”.
Class B. Class should have no object variables nor should you specify a constructor for it. It only has the method public void b(), which prints a string “B”.
Class C. Class should have no object variables nor should you specify a constructor for it. It only has the method public void c(), which prints a string “C”.

A a = new A();
B b = new B();
C c = new C();

a.a();
b.b();
c.c();

Sample Output

A
B
C

Modify the classes so that class B inherits class A, and class C inherits class B.
In other words, class A will be a superclass for class B, and class B will be a superclass for class C.

C c = new C();

c.a();
c.b();
c.c();

Sample Output

A
B
C

Access modifiers private, protected, and public

If a method or variable has the access modifier private, it is visible only to the internal methods of that class.
Subclasses will not see it, and a subclass has no direct means to access it.
So, from the Engine class there is no way to directly access the variables identifier, manufacturer, and description, which are defined in the superclass Part.
The programmer cannot access the variables of the superclass that have been defined with the access modifier private.
A subclass sees everything that is defined with the public modifier in the superclass.
If we want to define some variables or methods that are visible to the subclasses but invisible to everything else, we can use the access modifier protected to achieve this.

Calling the constructor of the superclass

You use the keyword super to call the constructor of the superclass.
The call receives as parameters the types of values that the superclass constructor requires.
If there are multiple constructors in the superclass, the parameters of the super call dictate which of them is used.
When the constructor (of the subclass) is called, the variables defined in the superclass are initialized.
The events that occur during the constructor call are practically identical to what happens with a normal constructor call.
If the superclass doesn’t provide a non-parameterized constructor, there must always be an explicit call to the constructor of the superclass in the constructors of the subclass.

`this` and `super`

public class Superclass {

    private String objectVariable;

    public Superclass() {
        this("Example");
    }

    public Superclass(String value) {
        this.objectVariable = value;
    }

    public String toString() {
        return this.objectVariable;
    }
}

public class Subclass extends Superclass {

    public Subclass() {
        super("Subclass");
    }
}

We demonstrate in this example how to call this and super.
The class Superclass includes an object variable and two constructors.
One of them calls the other constructor with the this keyword.
The class Subclass includes a parameterized constructor, but it has no object variables.
The constructor of Subclass calls the parameterized constructor of the Superclass.

Output example

Superclass sup = new Superclass();
Subclass sub = new Subclass();

System.out.println(sup);
System.out.println(sub);

Sample Output

Example
Subclass

Calling a superclass method

You can call the methods defined in the superclass by prefixing the call with super, just as you can call the methods defined in this class by prefixing the call with this.
For example, when overriding the toString method, you can call the superclass’s definition of that method in the following manner:

@Override
public String toString() {
    return super.toString() + "\n  And let's add my own message to it!";
}

Exercise 2 - Person and subclasses

1. Person
2. Student
3. Student’s toString
4. Teacher
5. List all Persons

Create a class Person.
The class must work as follows:

Person minji = new Person("Kim Minji", "123 Gangnam-daero, Gangnam-gu, Seoul 06035");
Person david = new Person("David Miller", "22 Itaewon-ro, Yongsan-gu, Seoul 04391");
System.out.println(minji);
System.out.println(david);

Sample Output

Kim Minji
  123 Gangnam-daero, Gangnam-gu, Seoul 06035
David Miller
  22 Itaewon-ro, Yongsan-gu, Seoul 04391

Create a class Student, which inherits the class Person.
At creation, a student has 0 study credits.
Every time a student studies, the amount of study credits goes up.
The class must act as follows:

Student ollie = new Student("Ollie", "45 Donggyo-ro, Mapo-gu, Seoul 03982");
System.out.println(ollie);
System.out.println("Study credits " + ollie.credits());
ollie.study();
System.out.println("Study credits " + ollie.credits());

Sample Output

Ollie
  45 Donggyo-ro, Mapo-gu, Seoul 03982
Study credits 0
Study credits 1

In the previous task, Studentinherits the toString method from the class Person.
However, you can also overwrite an inherited method, replacing it with your own version.
Write a version of toString method specifically for the Student class.
The method must act as follows:

Student ollie = new Student("Ollie", "45 Donggyo-ro, Mapo-gu, Seoul 03982");
System.out.println(ollie);
ollie.study();
System.out.println(ollie);

Sample Output

Ollie
  45 Donggyo-ro, Mapo-gu, Seoul 03982
  Study credits 0
Ollie
  45 Donggyo-ro, Mapo-gu, Seoul 03982
  Study credits 1

Create a class Teacher, which inherits the class Person.
The class must act as follows:

Teacher ada = new Teacher("Ada Lovelace", "12 Teheran-ro 5-gil, Gangnam-gu, Seoul 06134", 3000000);
Teacher michael = new Teacher("Michael Smith", "77 Mapo-daero, Mapo-gu, Seoul 04158", 6200000);
System.out.println(ada);
System.out.println(michael);

Student minji = new Student("Kim Minji", "45 Donggyo-ro, Mapo-gu, Seoul 03982");

int i = 0;
while (i < 25) {
  minji.study();
  i = i + 1;
}
System.out.println(minji);

Sample Output

Ada Lovelace
  12 Teheran-ro 5-gil, Gangnam-gu, Seoul 06134
  salary 3000000 KRW/month
Michael Smith
  77 Mapo-daero, Mapo-gu, Seoul 04158
  salary 6200000 KRW/month
Kim Minji
  45 Donggyo-ro, Mapo-gu, Seoul 03982
  Study credits 25

Write a method public static void printPersons(ArrayList<Person> persons) in the Main class.
The method prints all the persons on the list given as the parameter.
Method must act as follows when invoked from the main method:

public static void main(String[] args) {
    ArrayList<Person> persons = new ArrayList<Person>();
    persons.add(new Teacher("Ada Lovelace", "12 Teheran-ro 5-gil, Gangnam-gu, Seoul 06134", 3000000));
    persons.add(new Student("Ollie", "45 Donggyo-ro, Mapo-gu, Seoul 03982"));

    printPersons(persons);
}

Sample Output

Ada Lovelace
  12 Teheran-ro 5-gil, Gangnam-gu, Seoul 06134
  salary 3000000 KRW/month
Ollie
  45 Donggyo-ro, Mapo-gu, Seoul 03982
  Study credits 0

The actual type of an object dictates which method is executed

An object’s type decides what the methods provided by the object are.
For instance, we implemented the class Student earlier.
If a reference to a Student type object is stored in a Person type variable, only the methods defined in the Person class (and its superclass and interfaces) are available:

Person ollie = new Student("Ollie", "45 Donggyo-ro, Mapo-gu, Seoul 03982");
ollie.credits();        // DOESN'T WORK!
ollie.study();              // DOESN'T WORK!
System.out.println(ollie);   // ollie.toString() WORKS

So an object has at its disposal the methods that relate to its type, and also to its superclasses and interfaces.
The Student object above offers the methods defined in the classes Person and Object.

Overriden methods

In the last exercise we wrote a new toString implementation for Student to override the method that it inherits from Person.
The class Person had already overriden the toString method it inherited from the class Object.
If we handle an object by some other type than its actual type, which version of the object’s method is called?
In the following example, we’ll have two students that we refer to by variables of different types.
Which version of the toString method will be executed: the one defined in Object, Person, or Student?

Student ollie = new Student("Ollie", "45 Donggyo-ro, Mapo-gu, Seoul 03982");
System.out.println(ollie);
Person olliePerson = new Student("Ollie", "45 Donggyo-ro, Mapo-gu, Seoul 03982");
System.out.println(olliePerson);
Object ollieObject = new Student("Ollie", "45 Donggyo-ro, Mapo-gu, Seoul 03982");
System.out.println(ollieObject);
Object alice = new Student("Alice", "101 Yeoksam-ro, Gangnam-gu, Seoul 06235");
System.out.println(alice);

Overriden methods

Sample Output

Ollie
  45 Donggyo-ro, Mapo-gu, Seoul 03982
  credits 0
Ollie
  45 Donggyo-ro, Mapo-gu, Seoul 03982
  credits 0
Ollie
  45 Donggyo-ro, Mapo-gu, Seoul 03982
  credits 0
Alice
  101 Yeoksam-ro, Gangnam-gu, Seoul 06235
  credits 0

The method to be executed is chosen based on the actual type of the object, which means the class whose constructor is called when the object is created.
If the method has no definition in that class, the version of the method is chosen from the class that is closest to the actual type in the inheritance hierarchy.

Polymorphism

Regardless of the type of the variable, the method that is executed is always chosen based on the actual type of the object.
Objects are polymorphic, which means that they can be used via many different variable types.
The executed method always relates to the actual type of the object.
This phenomenon is called polymorphism.

Polymorphism example

Let’s examine polymorphism with another example.
You could represent a point in two-dimensional coordinate system with the following class:

public class Point {
    private int x;
    private int y;
    public Point(int x, int y) {
        this.x = x;
        this.y = y;
    }
    public int manhattanDistanceFromOrigin() {
        return Math.abs(x) + Math.abs(y);
    }
    protected String location(){
        return x + ", " + y;
    }
    @Override
    public String toString() {
        return "(" + this.location() + ") distance " + this.manhattanDistanceFromOrigin();
    }
}

Tip

The location method is not meant for external use, which is why it is defined as protected.
Subclasses will still be able to access the method.
Manhattan distance means the distance between two points if you can only travel in the direction of the coordinate axes.
It is used in many navigation algorithms, for example.

Colored point

A colored point is otherwise identical to a point, but it contains also a color that is expressed as a string.
Due to the similarity, we can create a new class by extending the class Point.

public class ColorPoint extends Point {

    private String color;

    public ColorPoint(int x, int y, String color) {
        super(x, y);
        this.color = color;
    }

    @Override
    public String toString() {
        return super.toString() + " color: " + color;
    }
}

The class defines an object variable in which we store the color.
The coordinates are already defined in the superclass.
We want the string representation to be the same as the Point class, but to also include information about the color.
The overriden toString method calls the toString method of the superclass and adds to it the color of the point.

`Point` and `ColorPoint` objects

Next, we’ll add a few points to a list.
Some of them are “normal” while others are color points.
At the end of the example, we’ll print the points on the list.
For each point, the toString to be executed is determined by the actual type of the point, even though the list knows all the points by the Point type.

public class Main {
    public static void main(String[] args) {
        ArrayList<Point> points = new ArrayList<>();
        points.add(new Point(4, 8));
        points.add(new ColorPoint(1, 1, "green"));
        points.add(new ColorPoint(2, 5, "blue"));
        points.add(new Point(0, 0));

        for (Point p: points) {
            System.out.println(p);
        }
    }
}

Sample Output

(4, 8) distance 12
(1, 1) distance 2 color: green
(2, 5) distance 7 color: blue
(0, 0) distance 0

Three dimensional point

We also want to include a three-dimensional point in our program.
Since it has no color information, let’s derive it from the class Point.

public class Point3D extends Point {

    private int z;

    public Point3D(int x, int y, int z) {
        super(x, y);
        this.z = z;
    }

    @Override
    protected String location() {
        return super.location() + ", " + z;    // the resulting string has the form "x, y, z"
    }

    @Override
    public int manhattanDistanceFromOrigin() {
        // first ask the superclass for the distance based on x and y
        // and add the effect of the z coordinate to that result
        return super.manhattanDistanceFromOrigin() + Math.abs(z);
    }

    @Override
    public String toString() {
        return "(" + this.location() + ") distance " + this.manhattanDistanceFromOrigin();
    }
}

So a three-dimensional point defines an object variable that represents the third dimension, and overrides the methods location, manhattanDistanceFromOrigin, and toString so that they also account for the third dimension.

Three types of `Point`

Let’s now expand the previous example and add also three-dimensional points to the list.

public class Main {

    public static void main(String[] args) {
        ArrayList<Point> points = new ArrayList<>();
        points.add(new Point(4, 8));
        points.add(new ColorPoint(1, 1, "green"));
        points.add(new ColorPoint(2, 5, "blue"));
        points.add(new Point3D(5, 2, 8));
        points.add(new Point(0, 0));


        for (Point p: points) {
            System.out.println(p);
        }
    }
}

Sample Output

(4, 8) distance 12
(1, 1) distance 2 color: green
(2, 5) distance 7 color: blue
(5, 2, 8) distance 15
(0, 0) distance 0

We notice that the toString method in Point3D is exactly the same as the toString of Point.
Could we save some effort and not override toString?
The answer happens to be yes!

Refined `Point3D`

The Point3D class is refined into this:

public class Point3D extends Point {

    private int z;

    public Point3D(int x, int y, int z) {
        super(x, y);
        this.z = z;
    }

    @Override
    protected String location() {
        return super.location() + ", " + z;
    }

    @Override
    public int manhattanDistanceFromOrigin() {
        return super.manhattanDistanceFromOrigin() + Math.abs(z);
    }
}

What is going on with `toString`?

What happens in detail when we call the toString method of a three-dimensional point?
The execution advances in the following manner.
1. Look for a definition of toString in the class Point3D. It does not exist, so the superclass is next to be examined.
2. Look for a definition of toString in the superclass Point.It can be found, so the code inside the implementation of the method is executed
  - so the exact code to be executed is return "("+this.location()+") distance "+this.manhattanDistanceFromOrigin();
  - the method location is executed first
  - look for a definition of location in the class Point3D. It can be found, so its code is executed.
  - This location calls the location of the superclass to calculate the result
  - next we look for a definition of manhattanDistanceFromOrigin in the Point3D class. It’s found and its code is then executed
  - Again, the method calls the similarly named method of the superclass during its execution

Precedence order in subclasses and superclasses

As we can see, the sequence of events caused by the method call has multiple steps.
The principle, however, is clear: The definition for the method is first searched for in the class definition of the actual type of the object.
If it is not found, we next examine the superclass.
If the definition cannot be found there, either, we move on to the superclass of this superclass, etc…

When is inheritance worth using?

Inheritance is a tool for building and specializing hierarchies of concepts; a subclass is always a special case of the superclass.
If the class to be created is a special case of an existing class, this new class could be created by extending the existing class.
For example, in the previously discussed car part scenario an engine is a part, but an engine has extra functionality that not all parts have.

How deep should the inheritance hierarchy should go?

When inheriting, the subclass receives the functionality of the superclass.
If the subclass doesn’t need or use some of the inherited functionality, inheritance is not justifiable.
Classes that inherit will inherit all the methods and interfaces from the superclass, so the subclass can be used in place of the superclass wherever the superclass is used.
It’s a good idea to keep the inheritance hierarchy shallow, since maintaining and further developing the hierarchy becomes more difficult as it grows larger.
Generally speaking, if your inheritance hierarchy is more than 2 or 3 levels deep, the structure of the program could probably be improved.

When we should not use inheritance?

Inheritance is not useful in every scenario.
For instance, extending the class Car with the class Part (or Engine) would be incorrect.
A car includes or has an engine and parts, but an engine or a part is not a car.
More generally, if an object owns or is composed of other objects, inheritance should not be used.

Important

When using inheritance, you should take care to ensure that the Single Responsibility Principle holds true.
There should only be one reason for each class to change.
If you notice that inheriting adds more responsibilities to a class, you should form multiple classes of the class.

Example of misusing inheritance

Let’s consider a postal service and some related classes.
Customer includes the information related to a customer, and the class Order that inherits from the Customer class and includes the information about the ordered item.

public class Customer {

    private String name;
    private String address;

    public Customer(String name, String address) {
        this.name = name;
        this.address = address;
    }

    public String getName() {
        return name;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }
}

Class `Customer`

Customer includes the information related to a customer, and the class Order that inherits from the Customer class and includes the information about the ordered item.

public class Order extends Customer {

    private String product;
    private String count;

    public Order(String product, String count, String name, String address) {
        super(name, address);
        this.product = product;
        this.count = count;
    }

    public String getProduct() {
        return product;
    }

    public String getCount() {
        return count;
    }

    public String postalAddress() {
        return this.getName() + "\n" + this.getAddress();
    }
}

What is the problem?

The previous example of inheritance is not used correctly.
When inheriting, the subclass must be a special case of the superclass; an order is definitely not a special case of a customer.
The misuse shows itself in how the code breaks the single responsibility principle: the Order class is responsible both for maintaining the customer information and the order information.
The problem becomes very clear when we think of what a change in a customer’s address would cause.
- In the case that an address changes, we would have to change every order object that relates to that customer.
- This is hardly ideal.
A better solution would be to encapsulate the customer as an object variable of the Order class.
Thinking more closely on the semantics of an order, this seems intuitive.
An order has a customer.

A better solution for `Order`

Let’s modify the Order class so that it includes a reference to a Customer object.

public class Order {

    private Customer customer;
    private String product;
    private String count;

    public Order(Customer customer, String product, String count) {
        this.customer = customer;
        this.product = product;
        this.count = count;
    }

    public String getProduct() {
        return product;
    }

    public String getCount() {
        return count;
    }

    public String postalAddress() {
        return this.customer.getName() + "\n" + this.customer.getAddress();
    }
}

This version of the Order class is better.
The method postalAddress uses the customer reference to obtain the postal address instead of inheriting the class Customer.
This helps both the maintenance of the program and its concrete functionality.
Now, when a customer changes, all you need to do is change the customer information; there is no need to change the orders.

Exercise 3 - Warehouse (Part 1)

Instructions
Warehouse class
Product warehouse
Product warehouse (2)
Usage example

The exercise template contains a class Warehouse, which has the following constructors and methods:
public Warehouse(double capacity) - Creates an empty warehouse, which has the capacity provided as a parameter; an invalid capacity (<=0) creates a useless warehouse, with the the capacity 0.
public double getBalance() - Returns the balance of the warehouse, i.e. the capacity which is taken up by the items in the warehouse.
public double getCapacity() - Returns the total capacity of the warehouse (i.e. the one that was provided in the constructor).
public double howMuchSpaceLeft() - Returns a value telling how much space is left in the warehouse.
public void addToWarehouse(double amount) - Adds the desired amount to the warehouse; if the amount is negative, nothing changes, and if everything doesn’t fit, then the warehouse is filled up and the rest is “thrown away” / “overflows”.
public double takeFromWarehouse(double amount) - Take the desired amount from the warehouse. The method returns much we actually get. If the desired amount is negative, nothing changes and we return 0. If the desired amount is greater than the amount the warehouse contains, we get all there is to take and the warehouse is emptied.
public String toString() - Returns the state of the object represented as a string like this balance = 64.5, space left 123.5

public class Warehouse {

    private double capacity;
    private double balance;

    public Warehouse(double capacity) {
        if (capacity > 0.0) {
            this.capacity = capacity;
        } else {
            this.capacity = 0.0;
        }

        this.balance = 0.0;
    }

    public double getBalance() {
        return this.balance;
    }

    public double getCapacity() {
        return this.capacity;
    }

    public double howMuchSpaceLeft() {
        return this.capacity - this.balance;
    }

    public void addToWarehouse(double amount) {
        if (amount < 0) {
            return;
        }
        if (amount <= howMuchSpaceLeft()) {
            this.balance = this.balance + amount;
        } else {
            this.balance = this.capacity;
        }
    }

    public double takeFromWarehouse(double amount) {
        if (amount < 0) {
            return 0.0;
        }
        if (amount > this.balance) {
            double allThatWeCan = this.balance;
            this.balance = 0.0;
            return allThatWeCan;
        }

        this.balance = this.balance - amount;
        return amount;
    }

    public String toString() {
        return "balance = " + this.balance + ", space left " + howMuchSpaceLeft();
    }
}

The class Warehouse handles the functions related to the amount of a product.
Now we want a product name for the product and a way to handle the name.
Let’s write ProductWarehouse as a subclass of Warehouse!
First, we’ll just create a private object variable for the product name, a constructor, and a getter for the name field:
public ProductWarehouse(String productName, double capacity) - Creates an empty product warehouse. The name of the product and the capacity of the warehouse are provided as parameters.
public String getName() - Returns the name of the product.

Important

Remind yourself of how a constructor can run the constructor of the superclass as its first action!

Example usage:

ProductWarehouse juice = new ProductWarehouse("Juice", 1000.0);
juice.addToWarehouse(1000.0);
juice.takeFromWarehouse(11.3);
System.out.println(juice.getName()); // Juice
System.out.println(juice);           // balance = 988.7, space left 11.3

Sample Output

Juice
balance = 988.7, space left 11.3

As we can see from the previous example, the toString() inherited by the ProductWarehouse object doesn’t (obviously!) know anything about the product name.
Something must be done! Let’s also add a setter for the product name while we’re at it:
- public void setName(String newName) - sets a new name for the product.
- public String toString() - Returns the state of the object represented as a string like this Juice: balance = 64.5, space left 123.5
The new toString() method could be written using the getters inherited from the superclass, which would give access to values of inherited, but still hidden fields.
However, the superclass already has the desired functionality to provide a string representation of the warehouse state, so why bother recreating that functionality?
Just take advantage of the inherited toString().

Important

Remind yourself of how to call an overridden method in a subclass!

Usage example:

ProductWarehouse juice = new ProductWarehouse("Juice", 1000.0);
juice.addToWarehouse(1000.0);
juice.takeFromWarehouse(11.3);
System.out.println(juice.getName()); // Juice
juice.addToWarehouse(1.0);
System.out.println(juice);           // Juice: balance = 989.7, space left 10.299999999999955

Sample Output

Juice
Juice: balance = 989.7, space left 10.299999999999955

Exercise 3 - Warehouse (Part 2)

Change History
History Analysis
Product warehouse with history
Usage example

Sometimes it might be useful to know how the inventory of a product changes over time: Is the inventory often low?
- Are we usually at the limit?
- Are the changes in inventory big or small? etc.
Thus we should give the ProductWarehouse class the ability to remember the changes in the amount of a product.
Let’s begin by creating a tool that aids in the desired functionality.
The storing of the change history could of course have been done using an ArrayList<Double> object in the class ProductWarehouse, however, we want our own specialized tool for this purpose.
The tool should be implemented by encapsulating the ArrayList<Double> object.
Public constructors and methods of the ChangeHistory class:
- public ChangeHistory() creates an empty ChangeHistory object.
- public void add(double status) adds provided status as the latest amount to remember in the change history.
- public void clear() empties the history.
- public String toString() returns the string representation of the change history. The string representation provided by the ArrayList class is sufficient.

Build on the ChangeHistory class by adding analysis methods:
- public double maxValue() returns the largest value in the change history. If the history is empty, the method should return zero.
- public double minValue() returns the smallest value in the change history. If the history is empty, the method should return zero.
- public double average() returns the average of the values in the change history. If the history is empty, the method should return zero.
The methods should not modify the order of the encapsulated list.

Implement ProductWarehouseWithHistory as a subclass of ProductWarehouse.
In addition to all the previous features this new warehouse also provides services related to the change history of the warehouse inventory.
The history is managed using the ChangeHistory object.
Public constructors and methods:
- public ProductWarehouseWithHistory(String productName, double capacity, double initialBalance) creates a product warehouse. The product name, capacity, and initial balance are provided as parameters.
Set the initial balance as the initial balance of the warehouse, as well as the first value of the change history.
- public String history() returns the product history like this [0.0, 119.2, 21.2]. Use the string representation of the ChangeHistory object as is.
Note: This initial version the history is not yet working properly; currently it only remembers the initial balance.

Usage example:

// the usual:
ProductWarehouseWithHistory juice = new ProductWarehouseWithHistory("Juice", 1000.0, 1000.0);
juice.takeFromWarehouse(11.3);
System.out.println(juice.getName()); // Juice
juice.addToWarehouse(1.0);
System.out.println(juice);           // Juice: balance = 989.7, space left 10.3

// etc

// however, history() still doesn't work properly:
System.out.println(juice.history()); // [1000.0]
// so we only get the initial state of the history set by the constructor...

Sample Output

Juice
Juice: balance = 989.7, space left 10.299999999999955
[1000.0]

Exercise 3 - Warehouse (Part 3)

Product warehouse with history
Usage example
Print Analysis

It’s time to make history! The first version didn’t know anything but the initial state of the history. Expand the class with the following methods
- public void addToWarehouse(double amount) works just like the method in the Warehouse class, but we also record the changed state to the history. NB: the value recorded in the history should be the warehouse’s balance after adding, not the amount added!
- public double takeFromWarehouse(double amount) works just like the method in the Warehouse class, but we also record the changed state to the history. NB: the value recorded in the history should be the warehouse’s balance after removing, not the amount removed!

Important

Remember how an overriding method can take advantage of the overridden method!

Usage example:

// the usual:
ProductWarehouseWithHistory juice = new ProductWarehouseWithHistory("Juice", 1000.0, 1000.0);
juice.takeFromWarehouse(11.3);
System.out.println(juice.getName()); // Juice
juice.addToWarehouse(1.0);
System.out.println(juice);           // Juice: balance = 989.7, space left 10.3

// etc

// and now we have the history:
System.out.println(juice.history()); // [1000.0, 988.7, 989.7]

Sample Output

Juice
Juice: balance = 989.7, space left 10.299999999999955
[1000.0, 988.7, 989.7]

Expand the class with the method
- public void printAnalysis(), which prints history related information for the product in the way presented in the example.
Usage example:

ProductWarehouseWithHistory juice = new ProductWarehouseWithHistory("Juice", 1000.0, 1000.0);
juice.takeFromWarehouse(11.3);
juice.addToWarehouse(1.0);
//System.out.println(juice.history()); // [1000.0, 988.7, 989.7]

juice.printAnalysis();

Sample Output

Product: Juice
History: [1000.0, 988.7, 989.7]
Largest amount of product: 1000.0
Smallest amount of product: 988.7
Average: 992.8

Class diagram of the Warehouse exercise

In a class diagram, the connections between classes are shown as arrows.
- The arrows also show the direction of the connection.
Composition is described by an arrow with a regular head.
- Object variables which refer to other objects are not written with the rest of the class attributes, but are shown as connections between the classes.
Inheritance is described by an arrow with an empty triangle head.
- The triangle points to the class being inherited from (superclass).
In the example the class diagram describes the classes from the Product warehouse exercise.
The ProductWarehouseWithHistory class inherits the ProductWarehouse class, which, in turn, inherits the Warehouse class.
ChangeHistory is a separate class connected to the ProductWarehouse.
ProductWarehouseWithHistory knows about the ChangeHistory but the ChangeHistory does not know about the ProductWarehouseWithHistory.

Abstract classes motivation

Sometimes, when planning a hierarchy of inheritance, there are cases when there exists a clear concept, but that concept is not a good candidate for an object in itself.
The concept would be beneficial from the point of view of inheritance, since it includes variables and functionality that are shared by all the classes that would inherit it.
On the other hand, you should not be able to create instances of the concept itself.

Abstract classes

An abstract class combines interfaces and inheritance.
You cannot create instances of them – you can only create instances of subclasses of an abstract class.
They can include normal methods which have a method body, but it’s also possible to define abstract methods that only contain the method definition.
Implementing the abstract methods is the responsibility of subclasses.
Generally, abstract classes are used in situations where the concept that the class represents is not a clear independent concept.
In such a case you shouldn’t be able to create instances of it.

Creating abstract classes

To define an abstract class or an abstract method the keyword abstract is used.
An abstract class is defined with the phrase public abstract class *NameOfClass*; an abstract method is defined by public abstract returnType nameOfMethod.
Let’s take a look at the following abstract class called Operation, which offers a structure for operations and executing them.

public abstract class Operation {

    private String name;

    public Operation(String name) {
        this.name = name;
    }

    public String getName() {
        return this.name;
    }

    public abstract void execute(Scanner scanner);
}

How to extend `Operation`

The abstract class Operation works as a basis for implementing different actions.
For instance, you can implement the plus operation by extending the Operation class in the following manner.

public class PlusOperation extends Operation {

    public PlusOperation() {
        super("PlusOperation");
    }

    @Override
    public void execute(Scanner scanner) {
        System.out.print("First number: ");
        int first = Integer.valueOf(scanner.nextLine());
        System.out.print("Second number: ");
        int second = Integer.valueOf(scanner.nextLine());

        System.out.println("The sum of the numbers is " + (first + second));
    }
}

Using `Operation` class

Since all the classes that inherit from Operation have also the type Operation, we can create a user interface by using Operation type variables.
Next we’ll show the class UserInterface that contains a list of operations and a scanner.
It’s possible to add operations to the UI dynamically.

public class UserInterface {

    private Scanner scanner;
    private ArrayList<Operation> operations;

    public UserInterface(Scanner scanner) {
        this.scanner = scanner;
        this.operations = new ArrayList<>();
    }

    public void addOperation(Operation operation) {
        this.operations.add(operation);
    }

    public void start() {
        while (true) {
            printOperations();
            System.out.println("Choice: ");

            String choice = this.scanner.nextLine();
            if (choice.equals("0")) {
                break;
            }

            executeOperation(choice);
            System.out.println();
        }
    }

    private void printOperations() {
        System.out.println("\t0: Stop");
        int i = 0;
        while (i < this.operations.size()) {
            String operationName = this.operations.get(i).getName();
            System.out.println("\t" + (i + 1) + ": " + operationName);
            i = i + 1;
        }
    }

    private void executeOperation(String choice) {
        int operation = Integer.valueOf(choice);

        Operation chosen = this.operations.get(operation - 1);
        chosen.execute(scanner);
    }
}

Interfaces and abstract classes

The user interface works like this:

UserInterface userInterface = new UserInterface(new Scanner(System.in));
userInterface.addOperation(new PlusOperation());

userInterface.start();

Sample Output

Operations:
        0: Stop
        1: PlusOperation
Choice: (user input) 1
First number: (user input) 8
Second number: (user input) 12
The sum of the numbers is 20

Operations:
        0: Stop
        1: PlusOperation
Choice: (user input) 0

Checking our learning objectives

You know that in the Java programming language every class inherits the Object class, and you understand why every object has methods toString, equals, and hashCode.
You are familiar with the concepts of inheritance, superclass, and subclass.
You can create classes that inherit some of their properties from another class.
You can call a constructor or method that is defined in a superclass.
You know how an object’s executed method is determined, and you are familiar with the concept of polymorphism.
You can assess when to use inheritance, and you can come up with an example that is not good for inheritance.

Acknowledgements

Some contents of this lecture are partially adapted from:
- The Java Programming MOOC from the University of Helsinki, licensed under CC BY-NC-SA 4.0.

Back to title slide Back to lecture slides index

Computer Language Lecture 12-2

Class contents

Agenda

Learning Objectives

Introduction

Class hierarchy

How does “extending a class” work?

Manufacturing system example

The Engine class

The improved Engine class

The constructor of Engine class

Engine object

Exercise 1 - ABC

Access modifiers private, protected, and public

Calling the constructor of the superclass

this and super

Output example

Calling a superclass method

Exercise 2 - Person and subclasses

The actual type of an object dictates which method is executed

Overriden methods

Overriden methods

Polymorphism

Polymorphism example

Colored point

Point and ColorPoint objects

Three dimensional point

Three types of Point

Refined Point3D

What is going on with toString?

Precedence order in subclasses and superclasses

When is inheritance worth using?

How deep should the inheritance hierarchy should go?

When we should not use inheritance?

Example of misusing inheritance

Class Customer

What is the problem?

A better solution for Order

Exercise 3 - Warehouse (Part 1)

Exercise 3 - Warehouse (Part 2)

Exercise 3 - Warehouse (Part 3)

Class diagram of the Warehouse exercise

Abstract classes motivation

Abstract classes

Creating abstract classes

How to extend Operation

Using Operation class

Interfaces and abstract classes

Checking our learning objectives

Acknowledgements

Computer Language
Lecture 12-2

`this` and `super`

`Point` and `ColorPoint` objects

Three types of `Point`

Refined `Point3D`

What is going on with `toString`?

Class `Customer`

A better solution for `Order`

How to extend `Operation`

Using `Operation` class
