Computer Language
Lecture 10

Introduction to Object Oriented Programming

Josue Obregon

jobregon@seoultech.ac.kr

Seoul National University of Science and Technology
Information Technology Management
Lecture slides index

May 11, 2025

Class contents

Introduction to Computer Programming and Java
Reading Input and Strings
Variables and calculation with numbers
Conditional statements
Repeating functionality
Methods
Lists, Arrays and Strings
Midterm

Introduction to Object Oriented Programming
Deeper look into Object Oriented Programming
Inheritance and Interfaces I
Inheritance and Interfaces II
Class diagrams, packages and exceptions
Project Live Code Review and Evaluation
Final examination

Agenda

What is Object-Oriented Programming (OOP)?
Classes and Objects
Constructors and the new keyword
Instance Variables and Encapsulation
Class Diagrams and Real-world Analogies
Creating Your Own Classes
Adding Methods to Objects
The static keyword vs. instance methods
Updating Instance Variables through Methods
Return Values from Methods

Learning Objectives

You’re familiar with the concepts of class, object, constructor, object methods, and object variables.
You understand that a class defines an object’s methods and that the values of instance (object) variables are object-specific.
You know how to create classes and objects, and know how to use objects in your programs.

Introduction

We’ll now begin our journey into the world of object-oriented programming.
We’ll start with focusing on describing concepts and data using objects.
From there on, we’ll learn how to add functionality, i.e., methods to our program.
Object-oriented programming is concerned with isolating concepts of a problem domain into separate entities and then using those entities to solve problems.
Concepts related to a problem can only be considered once they’ve been identified.
In other words, we can form abstractions from problems that make those problems easier to approach.

Objects as constructs

Once concepts related to a given problem have been identified, we can also begin to build constructs that represent them into programs.
These constructs, and the individual instances that are formed from them, i.e., objects, are used in solving the problem.
The statement “programs are built from small, clear, and cooperative objects” may not make much sense yet.
However, it will appear more sensible as we progress through the course, perhaps even self-evident.

Classes and Objects

We’ve already used some of the classes and objects provided by Java.
A class defines the attributes of objects, i.e., the information related to them (instance variables), and their commands, i.e., their methods.
The values of instance (i.e., object) variables define the internal state of an individual object, whereas methods define the functionality it offers.
A Method is a piece of source code written inside a class that’s been named and has the ability to be called.
A method is always part of some class and is often used to modify the internal state of an object instantiated from a class.

Clasas `ArrayList`

As an example, ArrayList is a class offered by Java, and we’ve made use of objects instantiated from it in our programs.
Below, an ArrayList object named integers is created and some integers are added to it.

// we create an object from the ArrayList class named integers
ArrayList<Integer> integers = new ArrayList<>();

// let's add the values 15, 34, 65, 111 to the integers object
integers.add(15);
integers.add(34);
integers.add(65);
integers.add(111);

// we print the size of the integers object
System.out.println(integers.size());

An object is always instantiated by calling a method that created an object, i.e., a (user input) constructor by using the new keyword.

The Relationship between a class and an object

A class lays out a blueprint for any objects that are instantiated from it.
Let’s draw from an analogy from outside the world of computers.
Detached houses are most likely familiar to most, and we can safely assume the existence of drawings somewhere that determine what exactly a detached house is to be like.

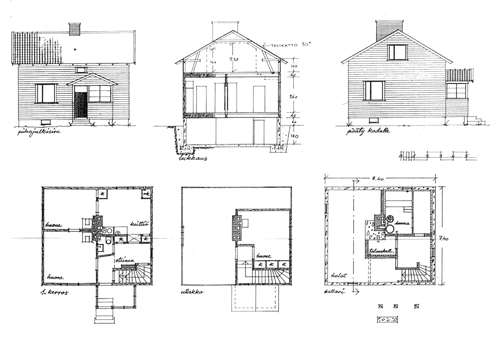

A class is a blueprint.
In other words, it specifies what kinds of objects can be instantiated from it:

Individual objects

Individual objects, detached houses in this case, are all created based on the same blueprints - they’re instances of the same class.
The states of individual objects, i.e., their attributes (such as the wall color, the building material of the roof, the color of its foundations, the doors’ materials and color, …) may all vary, however.
The following is an “object of a detached-house class”:

The exercise template comes with a ready-made class named Account.
The Account object represents a bank account that has balance (i.e.
one that has some amount of money in it).
Write a program that creates an account with a balance of 100.0, deposits 20.0 in it, and finally prints the balance.
(user input) NB!
Perform all the operations in this exact order.

public class Account {

    private double balance;
    private String owner;

    public Account(String owner, double balance) {
        this.balance = balance;
        this.owner = owner;
    }

    public void deposit(double amount) {
        this.balance = this.balance + amount;
    }

    public void withdrawal(double amount) {
        this.balance = this.balance - amount;
    }

    public double saldo() {
        return this.balance;
    }

    @Override
    public String toString() {
        return this.owner + " balance: " + this.balance;
    }
}

The accounts are used as follows:

Account mariosAccount = new Account("Mario's account", 100.00);
Account mariosSwissAccount = new Account("Mario's account in Switzerland", 1000000.00);

System.out.println("Initial state");
System.out.println(mariosAccount);
System.out.println(mariosSwissAccount);

mariosAccount.withdraw(20);
System.out.println("The balance of Mario's account is now: " + mariosAccount.balance());
mariosSwissAccount.deposit(200);
System.out.println("The balance of Mario's other account is now: " + mariosSwissAccount.balance());

System.out.println("End state");
System.out.println(mariosAccount);
System.out.println(mariosSwissAccount);

Exercise 2 - Your first bank transfer

The Account from the previous exercise class is also available in this exercise.
Write a program that:
1. Creates an account named "Matthews account" with the balance 1000
2. Creates an account named "My account" with the balance 0
3. Withdraws 100.0 from Matthew’s account
4. Deposits 100.0 to “my account”
5. Prints both the accounts

Creating Classes

A class specifies what the objects instantiated from it are like.
- The object’s variables (instance variables) specify the internal state of the object
- The object’s methods specify what the object does
We’ll now familiarize ourselves with creating our own classes and defining the variable that belong to them.
A class is defined to represent some meaningful entity, where a “meaningful entity” often refers to a real-world object or concept.
If a computer program had to process personal information, it would perhaps be meaningful to define a separate class Person consisting of methods and attributes related to an individual.
Let’s begin.
We’ll assume that we have a project template that has an empty main program:

public class Main {

    public static void main(String[] args) {

    }
}

Creating Classes in NetBeans

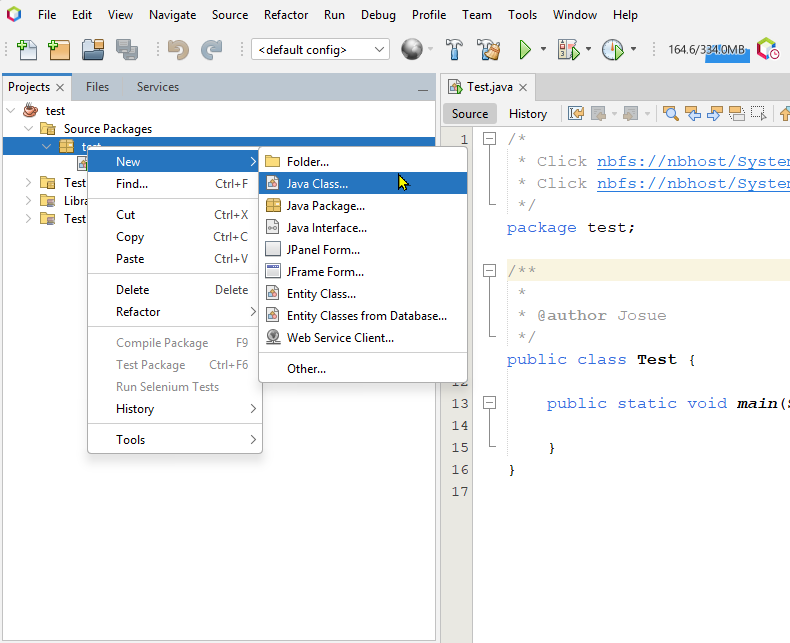

In NetBeans, a new class can be created by going to the projects section located on the left, right-clicking new, and then java class.
The class is provided a name in the dialog that opens.
As with variables and methods, the name of a class should be as descriptive as possible.
It’s usual for a class to live on and take on a different form as a program develops.
As such, the class may have to be renamed at some later point.

Creating a Person Class in NetBeans

Let’s create a class named Person.
For this class, we create a separate file named Person.java.
Our program now consists of two separate files since the main program is also in its own file.
The Person.java file initially contains the class definition (user input) public class Person and the curly brackets that confine the contents of the class.

public class Person {

}

After creating a new file in NetBeans, the current state is as follows.
In the image below, the class Person has been added to the Test project.

Class Person diagram

You can also draw a class diagram to depict a class.
We’ll become familiar with its notations as we go along.
An empty person-named class looks like this:

Class Person attributes

A class defines the attributes and behaviors of objects that are created from it.
Let’s decide that each person object has a name and an age.
It’s natural to represent the name as a string, and the age as an integer.
We’ll go ahead and add these to our blueprint:

public class Person {
    private String name;
    private int age;
}

We specify above that each object created from the Person class has a name and an age.
Variables defined inside a class are called instance variables, or object fields or object attributes.
Other names also seem to exist.
Instance variables are written on the lines following the class definition public class Person {.
Each variable is preceded by the keyword private.
The keyword private means that the variables are “hidden” inside the object.
This is known as encapsulation.

Instance variables in class diagram

In the class diagram, the variables associated with the class are defined as “variableName: variableType”.
The minus sign before the variable name indicates that the variable is [encapsulated]{stblue} (it has the keyword private).

We have now defined a blueprint – a class – for the person object.
Each new person object has the variables name and age, which are able to hold object-specific values.
The “state” of a person consists of the values assigned to their name and age.

Exercise 3 - Dog attributes

In this exercise, you’ll practice creating a class.
A new class can be added in NetBeans the following way: On the left side of the screen is the Projects list.
- Right-click on the project’s name, which for this exercise is dogattributes.
- From the drop-down menu, select New and Java Class.
- NetBeans will then ask for the class name.
Name the class Dog in this exercise, and press the finish button.
You have now created a class called Dog.
Add the variables private String name,private String breed and private int age to the class.
As a class diagram, the class looks like this:

The class doesn’t do much yet.
However, practicing this step is valuable for what is to come.

Defining a Constructor

We want to set an initial state for an object that’s created.
Custom objects are created the same way as objects from pre-made Java classes, such as ArrayList, using the new keyword.
It’d be convenient to pass values to the variables of that object as it’s being created.
For example, when creating a new person object, it’s useful to be able to provide it with a name:

public static void main(String[] args) {
    Person ada = new Person("Ada");
    // ...
}

This is achieved by defining the method that creates the object, i.e., its constructor.
The constructor is defined after the instance variables.

A constructor for Person class

In the following example, a constructor is defined for the Person class, which can be used to create a new Person object.
The constructor sets the age of the object being created to 0, and the string passed to the constructor as a parameter as its name:

public class Person {
    private String name;
    private int age;

    public Person(String initialName) {
        this.age = 0;
        this.name = initialName;
    }
}

The constructor’s name is always the same as the class name.
The class in the example is named Person, so the constructor will also have to be named Person.
The constructor is also provided, as a parameter, the name of the person object to be created.

The parameter is enclosed in parentheses and follows the constructor’s name.
The parentheses that contain optional parameters are followed by curly brackets.
In between these brackets is the source code that the program executes when the constructor is called (e.g., new Person ("Ada")).

Instantiation of a class

Objects are always created using a constructor.
A few things to note: the constructor contains the expression this.age = 0.
This expression sets the instance variable age of the newly created object (i.e., “this” object’s age) to 0.
The second expression this.name = initialName likewise assigns the string passed as a parameter to the instance variable name of the object created.

Exercise 4 - Room

Create a class named Room.
Add the variables private String code and private int seats to the class.
Then create a constructor public Room(String classCode, int numberOfSeats) through which values are assigned to the instance variables.

This class doesn’t do much either.
However, in the following exercise the object instantiated from our class is already capable of printing text.

Default Constructor

If the programmer does not define a constructor for a class, Java automatically creates a default one for it.
A default constructor is a constructor that doesn’t do anything apart from creating the object.
The object’s variables remain uninitialized (generally, the value of any object references will be null, meaning that they do not point to anything, and the values of primitives will be 0)
For example, an object can be created from the class below by making the call new Person()

public class Person {
    private String name;
    private int age;
}

More on default constructor

If a constructor has been defined for a class, no default constructor exists.
For the class below, calling new Person() would cause an error, as Java cannot find a constructor in the class that has no parameters.

public class Person {
    private String name;
    private int age;

    public Person(String initialName) {
        this.age = 0;
        this.name = initialName;
    }
}

Defining Methods For an Object

We know how to create an object and initialize its variables.
However, an object also needs methods to be able to do anything.
As we’ve learned, a method is a named section of source code inside a class which can be invoked.

public class Person {
    private String name;
    private int age;

    public Person(String initialName) {
        this.age = 0;
        this.name = initialName;
    }

    public void printPerson() {
        System.out.println(this.name + ", age " + this.age + " years");
    }
}

A method is written inside of the class beneath the constructor.
The method name is preceded by public void, since the method is intended to be visible to the outside world (public), and it does not return a value (void).

Objects and the Static Modifier

We’ve used the modifier static in some of the methods that we’ve written.
The static modifier indicates that the method in question does not belong to an object and thus cannot be used to access any variables that belong to objects.
Going forward, our methods will not include the static keyword if they’re used to process information about objects created from a given class.
If a method receives as parameters all the variables whose values it uses, it can have a static modifier.

Methods in class diagrams

In addition to the class name, instance variables and constructor, the class diagram now also includes the method printPerson.
Since the method comes with the public modifier, the method name is prefixed with a plus sign.
No parameters are defined for the method, so nothing is put inside the method’s parentheses.
The method is also marked with information indicating that it does not return a value, here void.

The method printPerson contains one line of code that makes use of the instance variables name and age – the class diagram says nothing about its internal implementations.
Instance variables are referred to with the prefix this.
All of the object’s variables are visible and available from within the method.

Using our Person class

Let’s create three persons in the main program and request them to print themselves:

public class Main {

    public static void main(String[] args) {
        Person ada = new Person("Ada");
        Person antti = new Person("Antti");
        Person martin = new Person("Martin");

        ada.printPerson();
        antti.printPerson();
        martin.printPerson();
    }
}

Prints:

Ada, age 0 years
Antti, age 0 years
Martin, age 0 years

Exercise 5 - Whistle

Create a class named Whistle.
Add the variable private String sound to the class.
After that, create the constructor public Whistle(String whistleSound), which is used to create a new whistle that’s given a sound.
Then create the method public void sound() that prints the whistle’s sound.

Whistle duckWhistle = new Whistle("Kvaak");
Whistle roosterWhistle = new Whistle("Peef");

duckWhistle.sound();
roosterWhistle.sound();
duckWhistle.sound();

Sample Output

Kvaak
Peef
Kvaak

Exercise 6 - Door

Create a class named Door.
The door does not have any variables.
Create for it a constructor with no parameters (or use the default constructor).
After that, create a public void knock() method for the door that prints the message “Who’s there?” when called.
The door should work as follows.

Door alexander = new Door();

alexander.knock();
alexander.knock();

Sample Output

Who's there?
Who's there?

Exercise 7 - Product

Create a class Product that represents a store product.
The product should have a price (double), a quantity (int) and a name (String).
The class should have:
- the constructor public Product (String initialName, double initialPrice, int initialQuantity)
- a method public void printProduct() that prints product information in the following format:
Sample Output

Banana, price 1.1, 13 pcs

The output above is based on the product being assigned the name banana, with a price of 1.1, and a quantity of 13 .

Changing an Instance Variable’s Value in a Method

Let’s add a method to the previously created Person class that increments the age of the person by a year.

public class Person {
    private String name;
    private int age;

    public Person(String initialName) {
        this.age = 0;
        this.name = initialName;
    }

    public void printPerson() {
        System.out.println(this.name + ", age " + this.age + " years");
    }

    // growOlder() method has been added
    public void growOlder() {
        this.age = this.age + 1;
    }
}

The method is written inside the Person class just as the printPerson method was.
The method increments the value of the instance variable age by one.
The class diagram also gets an update.

Calling the method `growOlder`

Let’s call the method and see what happens:

public class Main {

    public static void main(String[] args) {
        Person ada = new Person("Ada");
        Person antti = new Person("Antti");

        ada.printPerson();
        antti.printPerson();
        System.out.println("");

        ada.growOlder();
        ada.growOlder();

        ada.printPerson();
        antti.printPerson();
    }
}

The program’s print output is as follows:
Sample Output

Ada, age 0 years
Antti, age 0 years

Ada, age 2 years
Antti, age 0 years

That is to say that when the two objects are “born” they’re both zero-years old (this.age = 0; is executed in the constructor).
The ada object’s growOlder method is called twice.

As the print output demonstrates, the age of Ada is 2 years after growing older.
Calling the method on an object corresponding to Ada has no impact on the age of the other person object since each object instantiated from a class has its own instance variables.

Restricting the method `growOlder`

The method can also contain conditional statements and loops.
The growOlder method below limits aging to 30 years.

public class Person {
    private String name;
    private int age;

    public Person(String initialName) {
        this.age = 0;
        this.name = initialName;
    }

    public void printPerson() {
        System.out.println(this.name + ", age " + this.age + " years");
    }

    // no one exceeds the age of 30
    public void growOlder() {
        if (this.age < 30) {
            this.age = this.age + 1;
        }
    }
}

Exercise 8 - Decreasing counter

Instructions
Decreasing Counter class
Sample Use 1
Sample Use 2
Sample Use 3

The exercise template comes with a partially executed class decreasingCounter.
Implement the decrement() method in the class body in such a way that it decrements the value variable of the object it’s being called on by one.
- The counter’s value never becomes negative.
- This means that if the value of the counter is 0, it cannot be decremented.
- A conditional statement is useful here.
Create the method public void reset() for the counter that resets the value of the counter to 0.

public class DecreasingCounter {
    private int value;   // a variable that remembers the value of the counter

    public DecreasingCounter(int initialValue) {
        this.value = initialValue;
    }

    public void printValue {
        System.out.println("value: " + this.value);
    }

    public void decrement() {
        // write the method implementation here
        // the aim is to decrement the value of the counter by one
    }

    // and the other methods go here
}

public class MainProgram {
    public static void main(String[] args) {
        DecreasingCounter counter = new DecreasingCounter(10);

        counter.printValue();

        counter.decrement();
        counter.printValue();

        counter.decrement();
        counter.printValue();
    }
}

Sample Output

value: 10
value: 9
value: 8

public class MainProgram {
    public static void main(String[] args) {
        DecreasingCounter counter = new DecreasingCounter(2);

        counter.printValue();

        counter.decrement();
        counter.printValue();

        counter.decrement();
        counter.printValue();

        counter.decrement();
        counter.printValue();
    }
}

Sample Output

value: 2
value: 1
value: 0
value: 0

public class MainProgram {
    public static void main(String[] args) {
        DecreasingCounter counter = new DecreasingCounter(100);

        counter.printValue();

        counter.reset();
        counter.printValue();

        counter.decrement();
        counter.printValue();
    }
}

Sample Output

value: 100
value: 0
value: 0

Exercise 9 - Debt

Instructions
Sample Output

Create the class Debt that has double-typed instance variables of balance and interestRate.
The balance and the interest rate are passed to the constructor as parameters public Debt(double initialBalance, double initialInterestRate).
In addition, create the methods public void printBalance() and public void waitOneYear() for the class.
The method printBalance prints the current balance, and the waitOneYear method grows the debt amount.
The debt is increased by multiplying the balance by the interest rate.
Once you get the program to work, try out the previous example with the interest rates of the early 1990s recession when the interest rates were as high as 15-20% - try swapping the interest rate in the example above with 1.20 and see what happens.

The example below illustrates the development of a mortgage with an interest rate of one percent.

public class MainProgram {
    public static void main(String[] args) {

        Debt mortgage = new Debt(120000.0, 1.01);
        mortgage.printBalance();

        mortgage.waitOneYear();
        mortgage.printBalance();

        int years = 0;

        while (years < 20) {
            mortgage.waitOneYear();
            years = years + 1;
        }

        mortgage.printBalance();
    }
}

Sample Output

120000.0
121200.0
147887.0328416936

Returning a Value From a Method

A method can return a value.
The methods we’ve created in our objects haven’t so far returned anything.
This has been marked by typing the keyword void in the method definition.

public class Door {
    public void knock() {
        // ...
    }
}

The keyword void means that the method does not return a value.
If we want the method to return a value, we need to replace the void keyword with the type of the variable to be returned.

Teacher grading

In the following example, the Teacher class has a method grade that always returns an integer-type (int) variable (in this case, the value 10).
The value is always returned with the return command:

public class Teacher {
    public int grade() {
        return 10;
    }
}

The method returns an int type variable of value 10 when called.

For the return value to be used, it needs to be assigned to a variable.
This happens the same way as regular value assignment, i.e., by using the equals sign:

public static void main(String[] args) {
    Teacher teacher = new Teacher();

    int grading = teacher.grade();

    System.out.println("The grade received is " + grading);
}

Sample Output

The grade received is 10

The method’s return value is assigned to a variable of type int value just as any other int value would be.

Return values in expressions

The return value could also be used to form part of an expression.

public static void main(String[] args) {
    Teacher first = new Teacher();
    Teacher second = new Teacher();
    Teacher third = new Teacher();

    double average = (first.grade() + second.grade() + third.grade()) / 3.0;

    System.out.println("Grading average " + average);
}

Sample Output

Grading average 10.0

Return values summary

All the variables we’ve encountered so far can also be returned by a method.
To sum:

A method that returns nothing has the void modifier as the type of variable to be returned.
A method that returns an integer variable has the int modifier as the type of variable to be returned.
A method that returns a string has the String modifier as the type of the variable to be returned
A method that returns a double-precision number has the double modifier as the type of the variable to be returned.

public void methodThatReturnsNothing() {
    // the method body
}

public int methodThatReturnsAnInteger() {
    // the method body, requires a return statement
}

public String methodThatReturnsAString() {
    // the method body, requires a return statement
}

public double methodThatReturnsADouble() {
    // the method body, requires a return statement
}

Improving the Person class

Let’s continue with the Person class and add a returnAge method that returns the person’s age.

public class Person {
    private String name;
    private int age;

    public Person(String initialName) {
        this.age = 0;
        this.name = initialName;
    }

    public void printPerson() {
        System.out.println(this.name + ", age " + this.age + " years");
    }

    public void growOlder() {
        if (this.age < 30) {
            this.age = this.age + 1;
        }
    }
    // the added method
    public int returnAge() {
        return this.age;
    }

The class in its entirety:

The complete Person class diagram

Let’s illustrate how the method works:

public class Main {

    public static void main(String[] args) {
        Person mina = new Person("Mina");
        Person mike = new Person("Mike");

        mina.growOlder();
        mina.growOlder();

        mike.growOlder();

        System.out.println("Mina's age: " + mina.returnAge());
        System.out.println("Mike's age: " + mike.returnAge());
        int combined = mina.returnAge() + mike.returnAge();

        System.out.println("Mina's and Mike's combined age " + combined + " years");
    }
}

Sample Output

Mina's age 2
Mike's age 1

Mina's and Mike's combined age 3 years

Which number will be printed?

public class Counter{

    private int value;

    public Counter(int value) {
        this.value = value;
    }

    public void changeValue(int modifier) {
        this.value = this.value - modifier;
    }

    public int getValue() {
        return value;
    }

}

public static void main(String[] args) {
    Counter counter = new Counter(7);
    counter.changeValue(5);
    System.out.println(counter.getValue());
}

2
7
5
-2
12

Exercise 10 - Song

Create a class called Song.
The song has the instance variables name (string) and length in seconds (integer).
Both are set in the public Song(String name, int length) constructor.
Also, add to the object the methods public String name(), which returns the name of the song, and public int length(), which returns the length of the song.
The class should work as follows.

Song garden = new Song("In The Garden", 10910);
System.out.println("The song " + garden.name() + " has a length of " + garden.length() + " seconds.");

Sample Output

The song In The Garden has a length of 10910 seconds.

Exercise 11 - Film

Create a film class with the instance variables name (String) and ageRating (int).
Write the constructor public Film(String filmName, int filmAgeRating) for the class, and also the methods public String name() and public int ageRating().
The first of these returns the film title and the second returns its rating.
Below is an example use case of the class.

Film chipmunks = new Film("Alvin and the Chipmunks: The Squeakquel", 0);

Scanner reader = new Scanner(System.in);

System.out.println("How old are you?");
int age = Integer.valueOf(reader.nextLine());

System.out.println();
if (age >= chipmunks.ageRating()) {
    System.out.println("You may watch the film " + chipmunks.name());
} else {
    System.out.println("You may not watch the film " + chipmunks.name());
}

Sample Output

How old are you?
(user input) 7

You may watch the film Alvin and the Chipmunks: The Squeakquel

More on methods

As we came to notice, methods can contain source code in the same way as other parts of our program.
Methods can have conditionals or loops, and other methods can also be called from them.
Let’s now write a method for the person that determines if the person is of legal age.
The method returns a boolean - either true or false:

public class Person {
    // ...

    public boolean isOfLegalAge() {
        if (this.age < 18) {
            return false;
        }

        return true;
    }

    /*
     The method could have been written more succinctly in the following way:

    public boolean isOfLegalAge() {
        return this.age >= 18;
    }
    */
}

Testing the new method

public static void main(String[] args) {
    Person mina = new Person("Mina");
    Person mike = new Person("Mike");

    int i = 0;
    while (i < 30) {
        mina.growOlder();
        i = i + 1;
    }

    mike.growOlder();

    System.out.println("");

    if (mike.isOfLegalAge()) {
        System.out.print("of legal age: ");
        mike.printPerson();
    } else {
        System.out.print("underage: ");
        mike.printPerson();
    }

    if (mina.isOfLegalAge()) {
        System.out.print("of legal age: ");
        mina.printPerson();
    } else {
        System.out.print("underage: ");
        mina.printPerson();
    }
}

Sample Output

underage: Mike, age 1 years
of legal age: Mina, age 30 years

Getters

Let’s fine-tune the solution a bit more.
In its current form, a person can only be “printed” in a way that includes both the name and the age.
Situations exist, however, where we may only want to know the name of an object.
Let’s write a separate method for this use case:

public class Person {
    // ...

    public String getName() {
        return this.name;
    }
}

The getName method returns the instance variable name to the caller.
The name of this method is somewhat strange.
It is the convention in Java to name a method that returns an instance variable exactly this way, i.e., getVariableName.
Such methods are often referred to as “getters”.

Updated class diagram

Let’s mould the main program to use the new “getter” method:

public static void main(String[] args) {
    Person pekka = new Person("Pekka");
    Person antti = new Person("Antti");

    int i = 0;
    while (i < 30) {
        pekka.growOlder();
        i = i + 1;
    }

    antti.growOlder();

    System.out.println("");

    if (antti.isOfLegalAge()) {
        System.out.println(antti.getName() + " is of legal age");
    } else {
        System.out.println(antti.getName() + " is underage");
    }

    if (pekka.isOfLegalAge()) {
        System.out.println(pekka.getName() + " is of legal age");
    } else {
        System.out.println(pekka.getName() + " is underage ");
    }
}

The print output is starting to turn out quit neat:
Sample Output

Antti is underage
Pekka is of legal age

The class as a whole:

Exercise 12 - Gauge

Create the class Gauge.
The gauge has the instance variable private int value, a constructor without parameters (sets the initial value of the meter variable to 0), and also the following four methods:
- Method public void increase() grows the value instance variable’s value by one. It does not grow the value beyond five.
- Method public void decrease() decreases the value instance variable’s value by one. It does not decrease the value to negative numbers.
- Method public int value() returns the value variable’s value.
- Method public boolean full() returns true if the instance variable value has the value five. Otherwise, it returns false.
An example of the class in use.

Gauge g = new Gauge();

while(!g.full()) {
    System.out.println("Not full! Value: " + g.value());
    g.increase();
}

System.out.println("Full! Value: " + g.value());
g.decrease();
System.out.println("Not full! Value: " + g.value());

Sample Output

Not full! Value: 0
Not full! Value: 1
Not full! Value: 2
Not full! Value: 3
Not full! Value: 4
Full! Value: 5
Not full! Value: 4

A string representation of an object and the `toString`-method

We are guilty of programming in a somewhat poor style by creating a method for printing the object, i.e., the printPerson method.
A preferred way is to define a method for the object that returns a “string representation” of the object.
The method returning the string representation is always the method toString in Java.
Let’s define this method for the person in the following example:

public class Person {
    // ...

    public String toString() {
        return this.name + ", age " + this.age + " years";
    }
}

The toString functions as printPerson does.
However, it doesn’t itself print anything but instead returns a string representation, which the calling method can execute for printing as needed.

Using the `toString`-method

The method is used in a somewhat surprising way:

public static void main(String[] args) {
    Person mina = new Person("Mina");
    Person mike = new Person("Mike");

    int i = 0;
    while (i < 30) {
        mina.growOlder();
        i = i + 1;
    }

    mike.growOlder();

    System.out.println(mike); // same as System.out.println(mike.toString());
    System.out.println(mina); // same as System.out.println(mina.toString());
}

In principle, the System.out.println method requests the object’s string representation and prints it.
The call to the toString method returning the string representation does not have to be written explicitly, as Java adds it automatically.

How toes the `toString`-method works?

When a programmer writes:

System.out.println(mike);

Java extends the call at run time to the following form:

System.out.println(mike.toString());

As such, the call System.out.println(mike) calls the toString method of the mike object and prints the string returned by it.
We can remove the now obsolete printPerson method from the Person class.

Exercise 13 - Agent

The exercise template defines an Agent class, having a first name and last name.
A print method is defined for the class that creates the following string representation.

Agent bond = new Agent("James", "Bond");
bond.print();

Sample Output

My name is Bond, James Bond

Remove the print method, and create a public String toString() method for it, which returns the string representation shown above.
The class should function as follows.

Agent bond = new Agent("James", "Bond");

bond.toString(); // prints nothing
System.out.println(bond);

Agent ionic = new Agent("Ionic", "Bond");
System.out.println(ionic);

Sample Output

My name is Bond, James Bond
My name is Bond, Ionic Bond

Method parameters

Let’s continue with the Person class once more.
We’ve decided that we want to calculate people’s body mass indexes.
To do this, we write methods for the person to set both the height and the weight, and also a method to calculate the body mass index.
The new and changed parts of the Person object are as follows:

public class Person {
    private String name;
    private int age;
    private int weight;
    private int height;

    public Person(String initialName) {
        this.age = 0;
        this.weight = 0;
        this.height = 0;
        this.name = initialName;
    }

    public void setHeight(int newHeight) {
        this.height = newHeight;
    }

    public void setWeight(int newWeight) {
        this.weight = newWeight;
    }

    public double bodyMassIndex() {
        double heigthPerHundred = this.height / 100.0;
        return this.weight / (heigthPerHundred * heigthPerHundred);
    }

    // ...
}

The instance variables height and weight were added to the person.
Values for these can be set using the setHeight and setWeight methods.
Java’s standard naming convention is used once again, that is, if the method’s only purpose is to set a value to an instance variable, then it’s named as setVariableName.
Value-setting methods are often called “setters”.

Using the modified Person class

The new methods are put to use in the following case:

public static void main(String[] args) {
    Person carlos = new Person("Carlos");
    Person hana = new Person("Hana");

    carlos.setHeight(180);
    carlos.setWeight(86);

    hana.setHeight(175);
    hana.setWeight(64);

    System.out.println(carlos.getName() + ", body mass index is " + carlos.bodyMassIndex());
    System.out.println(hana.getName() + ", body mass index is " + hana.bodyMassIndex());
}

Prints:

Carlos, body mass index is 26.54320987654321
Hana, body mass index is 20.897959183673468

A parameter and instance variable having the same name!

In the preceding example, the setHeight method sets the value of the parameter newHeight to the instance variable height:

public void setHeight(int newHeight) {
    this.height = newHeight;
}

The parameter’s name could also be the same as the instance variable’s, so the following would also work:

public void setHeight(int height) {
    this.height = height;
}

In this case, height in the method refers specifically to a parameter named height and this.height to an instance variable of the same name.

Beware of common mistake

For example, the following example would not work as the code does not refer to the instance variable height at all.
What the code does in effect is set the height variable received as a parameter to the value it already contains:

public void setHeight(int height) {
    // DON'T DO THIS!!!
    height = height;
}

public void setHeight(int height) {
    // DO THIS INSTEAD!!!
    this.height = height;
}

Exercise 14 - Multiplier

Create a class Multiplier that has a:
- Constructor public Multiplier(int number).
- Method public int multiply(int number) which returns the value number passed to it multiplied by the number provided to the constructor.
You also need to create an instance variable in this exercise.
An example of the class in use:

Multiplier multiplyByThree = new Multiplier(3);

System.out.println("multiplyByThree.multiply(2): " + multiplyByThree.multiply(2));

Multiplier multiplyByFour = new Multiplier(4);

System.out.println("multiplyByFour.multiply(2): " + multiplyByFour.multiply(2));
System.out.println("multiplyByThree.multiply(1): " + multiplyByThree.multiply(1));
System.out.println("multiplyByFour.multiply(1): " + multiplyByFour.multiply(1));

Sample Output

multiplyByThree.multiply(2): 6
multiplyByFour.multiply(2): 8
multiplyByThree.multiply(1): 3
multiplyByFour.multiply(1): 4

Calling an internal method

The object may also call its methods.
For example, if we wanted the string representation returned by toString to also tell of a person’s body mass index, the object’s own bodyMassIndex method should be called in the toString method:

public String toString() {
    return this.name + ", age " + this.age + " years, my body mass index is " + this.bodyMassIndex();
}

So, when an object calls an internal method, the name of the method and this prefix suffice.
An alternative way is to call the object’s own method in the form bodyMassIndex(), whereby no emphasis is placed on the fact that the object’s own bodyMassIndex method is being called:

public String toString() {
    return this.name + ", age " + this.age + " years, my body mass index is " + bodyMassIndex();
}

Exercise 15 - Statistics

Instructions
Class template
Sample output

Create a class Statistics that has the following functionality (the file for the class is provided in the exercise template):
- a method addNumber adds a new number to the statistics
- a method getCount tells the number of added numbers
- a method sum tells the sum of the numbers added (the sum of an empty number statistics object is 0)
- a method average tells the average of the numbers added (the average of an empty number statistics object is 0
- The class does not need to store the added numbers anywhere, it is enough for it to remember their count.
Then, write a program that asks the user for numbers until the user enters -1.
- The program will then provide the sum of even and odd numbers.
- The program should use three Statistics objects to calculate the sums.
- Use the first to calculate the sum of all numbers, the second to calculate the sum of even numbers, and the third to calculate the sum of odd numbers.
- For the test to work, the objects must be created in the main program in the order they were mentioned above (i.e., first the object that sums all the numbers, then the one that sums the even ones, and then finally the one that sums the odd numbers)!

public class Statistics {
    private int count;
    private int sum;

    public Statistics() {
        // initialize the variables count and sum here
    }

    public void addNumber(int number) {
        // write code here
    }

    public int getCount() {
        // write code here
    }

    public int sum() {
        // write code here
    }

    public double average() {
        // write code here
    }
}

Sample Output

Enter numbers:
(user input) 4
(user input) 2
(user input) 5
(user input) 2
(user input) -1
Sum: 13
Sum of even numbers: 8
Sum of odd numbers: 5

Checking our learning objectives

You’re familiar with the concepts of class, object, constructor, object methods, and object variables.
You understand that a class defines an object’s methods and that the values of instance (object) variables are object-specific.
You know how to create classes and objects, and know how to use objects in your programs.

Acknowledgements

Some contents of this lecture are partially adapted from:
- The Java Programming MOOC from the University of Helsinki, licensed under CC BY-NC-SA 4.0.

Back to title slide Back to lecture slides index

Computer Language Lecture 10

Class contents

Agenda

Learning Objectives

Introduction

Objects as constructs

Classes and Objects

Clasas ArrayList

The Relationship between a class and an object

Individual objects

Exercise 1 - Your first account

Exercise 2 - Your first bank transfer

Creating Classes

Creating Classes in NetBeans

Creating a Person Class in NetBeans

Class Person diagram

Class Person attributes

Instance variables in class diagram

Exercise 3 - Dog attributes

Defining a Constructor

A constructor for Person class

Instantiation of a class

Exercise 4 - Room

Default Constructor

More on default constructor

Defining Methods For an Object

Objects and the Static Modifier

Methods in class diagrams

Using our Person class

Exercise 5 - Whistle

Exercise 6 - Door

Exercise 7 - Product

Changing an Instance Variable’s Value in a Method

Calling the method growOlder

Restricting the method growOlder

Exercise 8 - Decreasing counter

Exercise 9 - Debt

Returning a Value From a Method

Teacher grading

Return values in expressions

Return values summary

Improving the Person class

The complete Person class diagram

Which number will be printed?

Exercise 10 - Song

Exercise 11 - Film

More on methods

Testing the new method

Getters

Updated class diagram

Exercise 12 - Gauge

A string representation of an object and the toString-method

Using the toString-method

How toes the toString-method works?

Exercise 13 - Agent

Method parameters

Using the modified Person class

A parameter and instance variable having the same name!

Beware of common mistake

Exercise 14 - Multiplier

Calling an internal method

Exercise 15 - Statistics

Checking our learning objectives

Acknowledgements

Computer Language
Lecture 10

Clasas `ArrayList`

Calling the method `growOlder`

Restricting the method `growOlder`

A string representation of an object and the `toString`-method

Using the `toString`-method

How toes the `toString`-method works?
